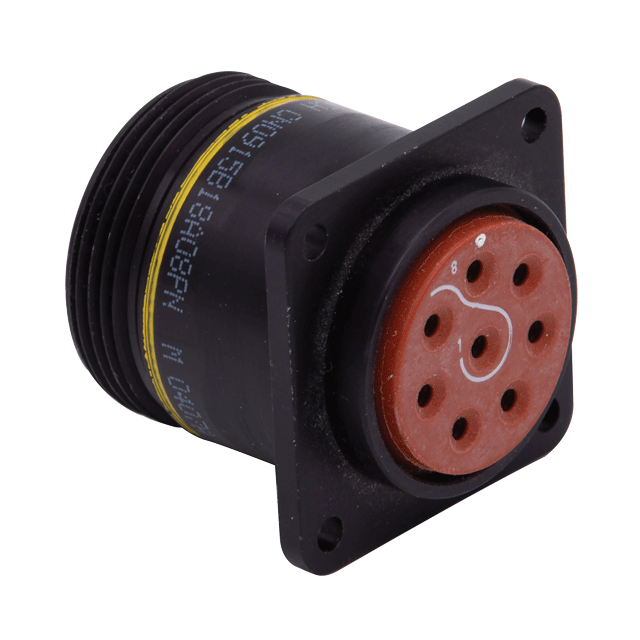

CN0915 Series - Limited Wiring Space Receptacle Connectors
ConnectorsThe Omega CN0915 Series connectors are designed for limited wiring space applications and meet MIL-C-26500 specifications. These connectors offer high reliability and are suitable for use in demanding environments, including aerospace and military applications. They provide robust performance under extreme conditions such as shock, vibration, and exposure to harsh environments.
Options and Variations
- Shell Sizes:Available in nine shell sizes; 8, 10, 12, 14, 16, 18, 20, 22, and 24.

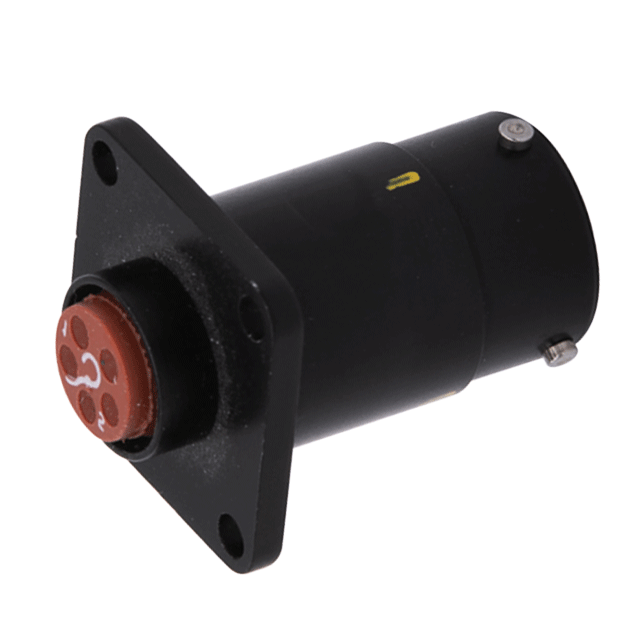

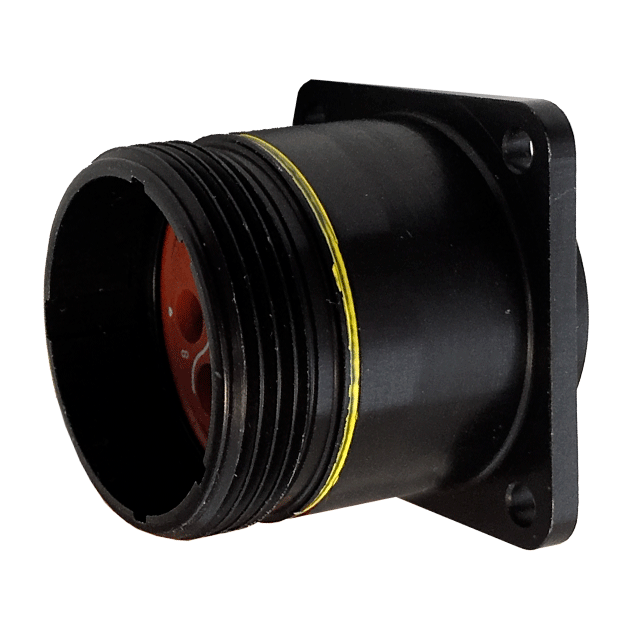

- Coupling Styles:Offered in both bayonet and threaded coupling styles for secure and reliable connections.
- Contact Styles:Includes crimp contacts with removable contacts for ease of installation and maintenance, as well as copper alloy with gold plating for high conductivity and corrosion resistance.
- Materials:Available in either lightweight aluminum alloy or stainless steel, with various finishes such as anodized, electroless nickel, and cadmium over nickel.
- Environmental Sealing:Built to endure vibration and shock resistance and keep out moisture.
Special Attributes:
- Mounting Options:Suitable for panel mount and inline configurations.
- Durability:Rated for up to 500 mating cycles for bayonet couplings and 200 mating cycles for threaded couplings.
- Electrical Performance:High insulation resistance (5000 megohms) and dielectric strength (1500 volts VAC RMS).
Configure Part
Use the dropdown form below to configure this part to fit your exact specifications.
All fields are required.
Current Configuration:
Use the form to start configuring this part
Coupling Style
Not Selected
Shell Size
Not Selected
Environmental Class
Not Selected
Insert Arrangement
Not Selected
Contact Style
Not Selected
Alternate Shell Positions
Not Selected
Order Code (Deviations)
Not Selected
