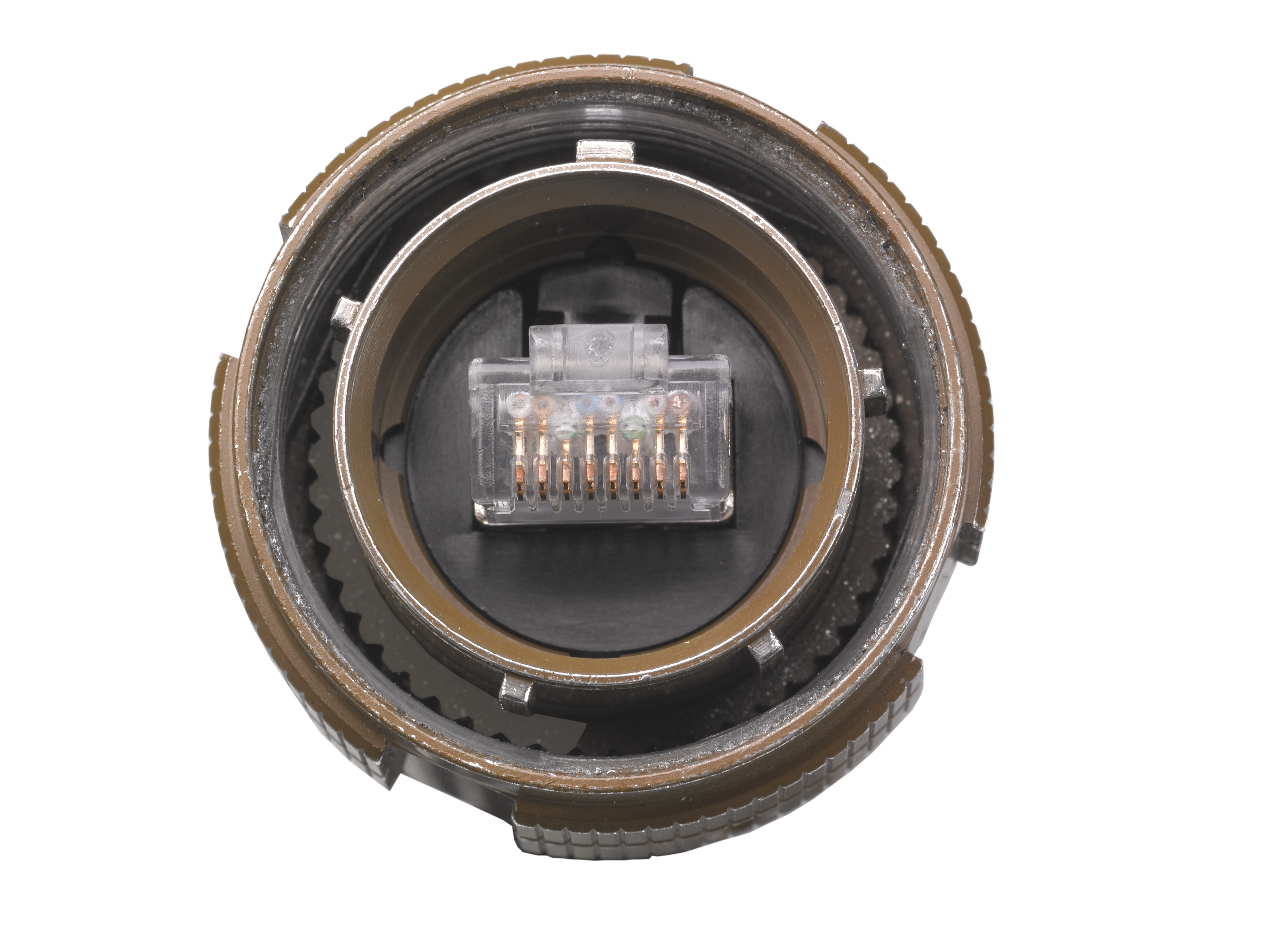

RJ45 D38999 C-RJFTV Series

Circular Connectors

The Cinch C-RJFTV Series brings high-speed Ethernet connectivity to the D38999 Series III circular platform, supporting 10BASE-T, 100BASE-T, and 1G BASE-T data transmission up to 100 MHz. Sealed to IP68 with EMI-shielded cable compatibility, the series is built for military communications, railway, oil and gas, and other harsh environment applications. Available in shell sizes 17 and 19 — with Size 19 among the smallest D38999-style RJ45 connectors on the market — the C-RJFTV offers panel mount and jam nut configurations, multiple shell material and plating options, four polarization keyways, and a minimum of 500 mating cycles.

View Datasheet

View Part Numbers

Features

D38999 series III style shell
EMI protection with shielded cable
Available in a variety of metals and plating’s
Minimum of 500 mating cycles
Sealed to IP68
Four keyways availableStandby Output (Always Present)
1U Form Factor
Forward & Reverse Airflow
I²C Communication Interface with PMBus® Protocol for Control, Programming and Monitoring

Specifications

Connector Type	Plastic gland), Plug (Metal gland), Plug (Plastic gland), Receptacle, Receptacle (IP68 backshell
Series Type	RJ45 D38999 C-RJFTV Series
Shell Material	Aluminum
Shell Size	17
Shell Style	Jam Nut, Square Flange, Straight
Brand	Aero Circulars, Cinch Mil
Back End Termination	Female\| RJ45\| Straight, RJ45, Straight
Cordset length (m)	0.3 ~ 1.5
Shell Plating	Nickel, Olive Rab

Part Numbers
